Double Housing Planer Double housing planer is a high speed heavy duty as well as rigid machines It has a high degree of surface finish Work is mounted on a table which reciprocates while the tool is held on the machine frame It can make deep cuts and heavy feeds can be applied to finish the work in a short time The tool is stationery and work is moving
Double Housing Planer Machine Double Housing Planer Machine It is a most common type of planer machine used in production processes This machine consists of two columns housing units so that it can machine two opposite vertical surfaces of the work piece at the same time The work table is generally drived by mechanical or hydraulic devices modimechanicalengineeringtutorials mechanicalmagicmechanicallearningtutorials In this video detail explanation about Double housing Planer Machine Double
Double Housing Planer
Double Housing Planer
https://machinesused.s3.amazonaws.com/1/2020/12/medium/62f1a7e40dbcce69348b2f09b7d1c4a7

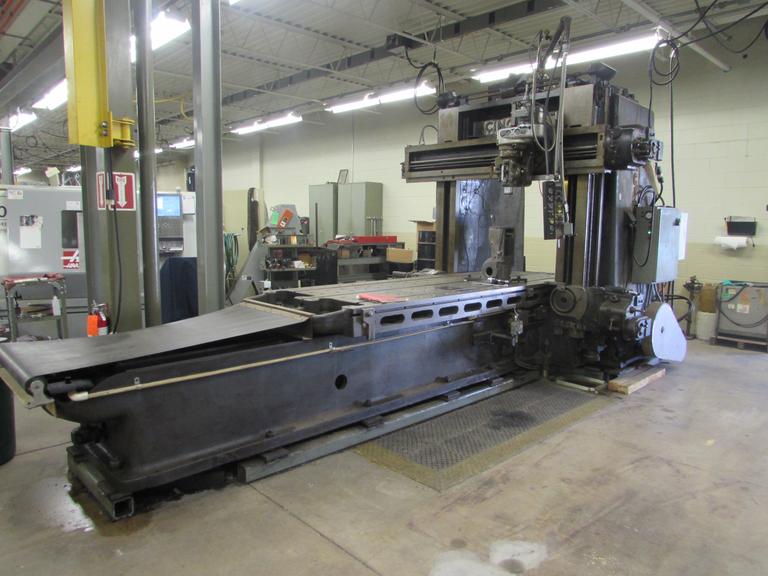

Gray DOUBLE HOUSING PLANER MILL PLANER Variable
https://cdn.wotol.com/oYCS-ykJT2SHtHuw2okE9Js_wcs=/fit-in/750x750/media/pictures/69f/69f903d5-d4b9-4476-b5bc-e1a6f7ba964a.jpeg
Gray 48 X 48 X 196 G A GRAY DOUBLE HOUSING PLANER Variable
https://cdn.wotol.com/X2HpgjFRerHN9ngQr1rjfuNfWDA=/fit-in/750x750/media/pictures/f5e/f5e91ba8-e7c1-4706-8743-5ef345b1b12d.jpeg
The block diagram showing the principal parts of the double housing planer is shown in Fig 15 1 and the various parts are described below Part 1 Bed Planer bed is a very strong and robust structure made out of cast iron and strengthened with cross ribs On very long planers the bed is sometimes made from two or more castings bolted together in perfect alignment with each other As the Housing and columns The columns are vertical members and are there on both sides of the bed in case of double housing planer and on one side in case of an open side planer In the front of columns accurately machined guideways are there along which cross rail may slide up and down
Double housing planer machine This is one of the most common types of planer machines used in most workshops It comprises a long heavy base having an accurately machined guideway that allows a table to reciprocate on it The length is twice the length of the table There are two vertical housings mounted close to the middle of the bed one on Types of planer machines Standard or double housing planer It is most widely used in work shops It has a long heavy base on which a table reciprocates on accurate guide ways It has one draw back Because of the two housings one on each side of the bed it limits the width of the work that can be machined Fig 3 30 shows a double housing
